Product Description:
POLYCIMA-80MP85V is a high flame-retardant thermoplastic elastomer based on a composite of SEBS and PPO, incorporating an efficient flame-retardant system primarily composed of phosphorus-nitrogen flame retardants. This material exhibits excellent mechanical and physical properties, electrical performance, and processability, while complying with environmental regulations such as ROHS, SVHC, 16P, and PAHS.
Product Applications:
Suitable for USB data cables, electronic wires, drag chain cables, SFP high-speed transmission wires, and other products. It passes the VW-1 flame retardancy rating test as specified in UL758, supports various extrusion methods such as pressure extrusion, semi-pressure extrusion, and tube extrusion, and certain specifications can also be produced using injection molding processes.
Property | Test Method | Unit | Typical Value |
Density | ISO 1183 | g/cm³ | 1.08 |
Tensile strength | IEC60811-1-1 | MPa | 15 |
Elongation at break | IEC60811-1-1 | % | 155 |
Aging performance | IEC60811-1-2 | °C × h | 113°C × 168 |
Tensile strength retention rate | IEC60811-1-2 | % | ≥75 |
Elongation at break retention rate | IEC60811-1-2 | % | ≥75 |
Low temperature impact embrittlement temperature | GB/T5470 | °C | -25 |
Toxicity index | — | — | 1.3 |
pH value | IEC60754-2 | — | 4.7 |
Electrical conductivity | — | μS/mm | 0.5 |
Dielectric strength | GB/T1408 | KV/mm | 23 |
Oxygen index | ISO4589-2 | % | 26 |
Packaging/Storage:
25 kg/bag; transport as general chemical product, store in a dry and cool place, avoid direct sunlight. Shelf life: 1 year.
Note:
The technical property indicators and data provided in this document are for reference only and cannot be used as a basis for inspection or guarantee. Users purchasing our products are also responsible for conducting tests to verify whether the product is suitable for their intended process, application, performance requirements, and standards. Since the application and processing of our products are beyond our control, all related matters and consequences shall be borne solely by the user.
Molding Processing Guide
Injection Molding Guide:
· Shrinkage: 0.010–0.020 inch
· Injection speed: Medium–high
· Injection pressure: Medium–high
· Back pressure: Low–medium
· Holding pressure: Sufficient to shape the product inside the mold
· Cooling: Sufficient to demold the part

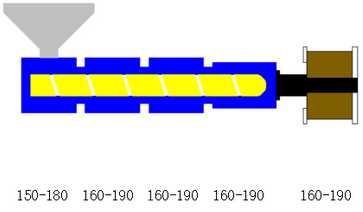

· Screw temperature (°C):
Extrusion Processing Guide:
· Length/Diameter Ratio: 20:1–25:1
· Compression Ratio: 2.5–3.0
· Screen Pack and Filter: Required
· Stretching: 5–10%
· Cooling: Water bath cooling

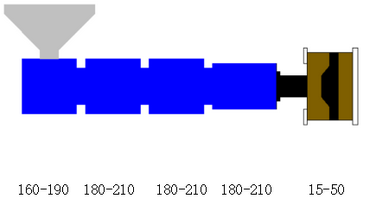

· Screw Temperature (°C):
Key Processing Precautions:
A: It is recommended to dry at 90°C for 2–4 hours.
B: Before and after processing this material, it is recommended to clean the screw or die with polypropylene (PP) or polyethylene (PE).
C: Scrap material can be reused. It must be dried before use. The addition amount should generally not exceed 15%, and the properties remain largely unaffected.
