Product Description:
POLYCIMA-80E85V is a highly flame-retardant thermoplastic elastomer based on SEBS, formulated with a phosphorus-nitrogen flame retardant system. It offers excellent mechanical properties, electrical performance, and processing adaptability, while complying with environmental regulations such as ROHS, SVHC, 16P, and PAHS.
Product Applications:
Suitable for USB data cables, coaxial cables, drag chain cables, SFP high-speed transmission cables, and charging pile cables, among other wire and cable products. This material can pass the VW-1 flame rating test as required by UL758. Processing methods include extrusion, semi-tube extrusion, and tube extrusion; some specifications are also suitable for injection molding.
Performance Indictor
Property | Test Method | Unit | Typical Value |
Density | ISO 1183 | g/cm³ | 1.08 |
Tensile Strength | IEC 60811-1-1 | MPa | 15 |
Elongation at Break | IEC 60811-1-1 | % | 155 |
Aging Performance | IEC 60811-1-2 | °C×h | 113°C×168 |
Tensile Strength Retention | IEC 60811-1-2 | % | ≥75 |
Elongation at Break Retention | IEC 60811-1-2 | % | ≥75 |
Low Temperature Impact Brittleness Temperature | GB/T 5470 | °C | -25 |
Toxicity Index | — | — | 0.92 |
pH Value | IEC 60754-2 | — | 3.9 |
Electrical Conductivity | — | μS/mm | 0.36 |
Dielectric Strength | GB/T 1408 | kV/mm | 21 |
Oxygen Index | ISO 4589-2 | % | 24 |
Packaging / Storage:
25 kg/bag; transport as general chemical product, store in a dry, cool place away from direct sunlight.
Shelf life:
1 year.
Note:
The technical properties and data provided in this document are for reference only and cannot be used as basis for inspection or guarantee. Users are responsible for conducting their own tests on our products to verify their suitability for the intended processes, applications, properties, and standards. Since the application and processing of our products are beyond our control, all related matters shall be solely at the user’s own responsibility.
Molding Processing Guide
Injection Molding Guide:
· Shrinkage: 0.010–0.020 inch
· Injection Speed: Medium–High
· Injection Pressure: Medium–High
· Back Pressure: Low–Medium
· Holding Pressure: Sufficient to ensure product shaping inside the mold
· Cooling: Sufficient to allow product demolding

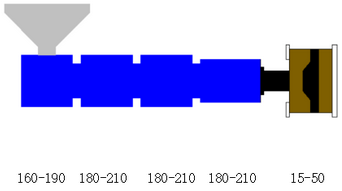

· Screw Temperature (°C):
Extrusion Processing Guide:
Parameter | Value |
L/D Ratio | 20:1 - 25:1 |
Compression Ratio | 2.5 - 3.0 |
Breaker Plate and Screen Pack | Required |
Draw Down Ratio | 5-10% |
Cooling | Water bath cooling |

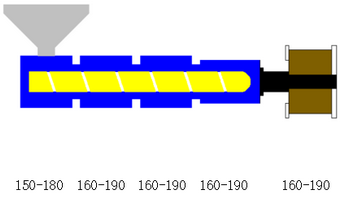

· Screw Temperature (°C):
Processing Main Considerations:
A: It is recommended to dry at 90°C for 2–4 hours.
B: It is recommended to clean the screw or die with polypropylene or polyethylene before and after processing this material.
C: Scrap material can be reused. It must be dried before use, and the addition amount generally should not exceed 15%, with basically no impact on performance.
