Product Description:
POLYCIMA-80E80F is a highly flexible thermoplastic elastomer based on SEBS, featuring a phosphorus-nitrogen flame retardant system as its core. It is a horizontal flame-retardant material. This product offers excellent mechanical and physical properties, electrical properties, and processing performance, and fully complies with regulatory requirements such as RoHS, SVHC, 16P, and PAHS.
Product Application:
This product is suitable for various cable applications, including USB data cables, coaxial cables, drag chain cables, SFP high-speed transmission wires, etc. It supports multiple extrusion processes such as pressure extrusion, semi-tube extrusion, and tube extrusion. Some specifications can also be injection molded. It has passed the FT-2 flame retardancy rating test under UL758 standard.
Performance indicators
Performance | Test Method | Unit | Typical Value |
Density | ISO 1183 | g/cm³ | 1.13 |
Tensile Strength | IEC60811-1-1 | MPa | 17 |
Elongation at Break | IEC60811-1-1 | % | 350 |
Aging Performance | IEC60811-1-2 | °C x h | 113 x 168 |
Tensile Strength Retention | IEC60811-1-2 | % | ≥75 |
Elongation at Break Retention | IEC60811-1-2 | % | ≥75 |
Low Temperature Impact Brittleness Temp. | GB/T5470 | °C | -25 |
Toxicity Index | - | - | 0.91 |
pH Value | IEC60754-2 | - | 3.7 |
Electrical Conductivity | - | μs/mm | 0.39 |
Dielectric Strength | GB/T1408 | kV/mm | 25 |
Oxygen Index | ISO4589-2 | % | 20 |
Packaging/Storage:
25 kg/bag; transport as general chemical product, store in a dry and cool place, avoid direct sunlight.
Shelf life:
1 year.
Note:
The technical specifications and data provided in this document are for reference only and cannot be used as a basis for inspection or guarantee. Users are responsible for conducting experiments with the products purchased from our company to verify their suitability for the intended processes, applications, performance, and standards. Since the application and processing of our products are beyond our control, any related matters shall be solely the responsibility of the user.
Molding Processing Guide
Injection Molding Guide:
· Shrinkage: 0.010–0.020 inch
· Injection Speed: Medium–High
· Injection Pressure: Medium–High
· Back Pressure: Low–Medium
· Holding Pressure: Sufficient to ensure product shaping inside the mold
· Cooling: Sufficient to allow product demolding

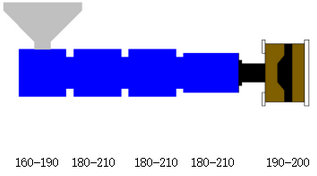

· Screw Temperature (°C):
