Product Description:

POLYCIMA80E90V is a highly flameretardant thermoplastic elastomer based on SEBS, using phosphorusnitrogen flame retardants as the main flameretardant system. It meets the requirements of regulations such as RoHS, SVHC, 16P, and PAHs. The material exhibits excellent mechanical/physical properties, electrical properties, and processability.

Product Application:

It can be used in USB data cables, coaxial cables, drag chain cables, SFP highspeed transmission wires, and charging pile cables. It passes the VW1 flame retardancy等级 (rating) as required by UL758. Extrusion methods include pressure extrusion, semitubing extrusion, and tubing extrusion. Some grades can also be injectionmolded.

Performance indicators

Packaging/Storage:

25 kg/bag; transport as general chemical product, store in a dry and cool place, avoid direct sunlight.

Shelf life:

1 year.

Note:

The technical specifications and data provided in this document are for reference only and cannot be used as a basis for inspection or guarantee. Users are responsible for conducting experiments with the products purchased from our company to verify their suitability for the intended processes, applications, performance, and standards. Since the application and processing of our products are beyond our control, any related matters shall be solely the responsibility of the user.

Molding Processing Guide

Injection Molding Guide:

· Shrinkage: 0.010–0.020 inch

· Injection Speed: Medium–High

· Injection Pressure: Medium–High

· Back Pressure: Low–Medium

· Holding Pressure: Sufficient to ensure product shaping inside the mold

· Cooling: Sufficient to allow product demolding

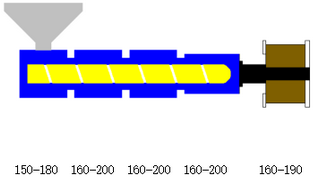

· Screw Temperature (°C):

Extrusion Processing Guide:

· Screw Temperature (°C):

Processing Main Considerations:

A: It is recommended to dry at 90°C for 2–4 hours.

B: It is recommended to clean the screw or die with polypropylene or polyethylene before and after processing this material.
