Product Description:

POLYCIMA-125XLF is an XLPE material based primarily on an aluminummagnesium and phosphorusnitrogen flame retardant system. This product exhibits excellent mechanical and physical properties, electrical properties, and processing performance, and complies with environmental regulations such as ROHS, SVHC, 16P, and PAHS.

Product Application:

The product meets the requirements of UL758 and is suitable for electronic wires compliant with the UL125℃ standard, such as UL3266, UL3265, UL3173, UL3271, etc. It passes the singlewire horizontal flame test.

Packaging/Storage:

25 kg/bag; transported as general chemicals, store in a dry and cool place, avoid direct sunlight. Shelf life: 1 year.

Note:

The technical specifications and data provided in this document are for reference only and cannot be used for inspection or warranty purposes. Users are also responsible for conducting experiments on the products purchased from our company to verify their suitability for the intended processes, applications, performance, and standards. Since the application and processing of our products are beyond our control, all resulting matters shall be solely the responsibility of the user.

xtrusion Processing Guide:

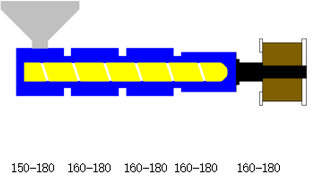

Screw Temperature (°C):

Processing Precautions:
A: It is recommended to dry the material at 90°C for 2–4 hours.
B: It is recommended to clean the screw or die head with a special purging compound before and after processing this material.
